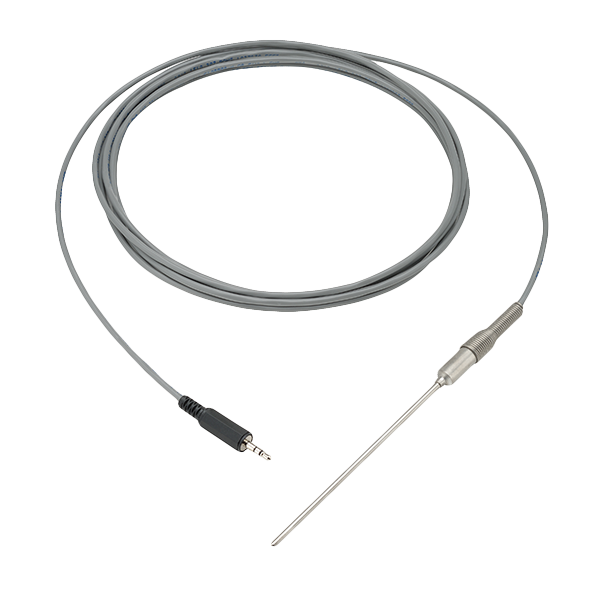

Temperature monitoring probe
A 6 in temperature probe for monitoring sample temperature during Q2500 processing.
High-power industrial ultrasonic processor
Q2500 Sonicator
A 2,500 W ultrasonic system for demanding industrial processing, with programmable intensity, pulsed output and an included high-intensity probe.
PRODUCT OVERVIEW
Ultrasonic processing.
Matched to your sample.
The Q2500 is the highest-power model in this range. Its industrial system combines a generator, converter, booster and high-intensity probe for approximately 5-20 L processing applications.
Digital control supports programmed time and amplitude, with a standard pulse function for managing energy input in temperature-sensitive samples. Power, energy and elapsed-time feedback provide visibility during a run. An optional temperature monitoring probe is available for extended-duration work.
The stated volume range depends on the formulation and process. Viscosity and concentration affect achievable batch size and processing time. The converter uses a clean, dry compressed-air supply; a portable air-cooling alternative is available.
CAPABILITIES
Features
- Programmable processing time and amplitude
- Pulsed output for temperature-sensitive samples
- Elapsed time, power in watts and energy in joules displayed during processing
- Fault detection and overload protection
- 2,500 W rated output
- Amplitude adjustable from 20% to 100%
- High-intensity probe and booster included
- Optional sample temperature monitoring
- Converter air-cooling configurations available
APPLICATION FIT
Where it works
- High-power batch sonication
- Industrial liquid processing
- Application-dependent large-volume processing
Processing capacity depends on sample properties, tube or vessel geometry and the selected probe or rack.
TECHNICAL DETAILS
Specifications
- Rated power
- 2,500 W
- Frequency
- 20 kHz
- Volume
- Approximately 5-20 L; application dependent
- Amplitude range
- 20-100%
- Timer
- 1 second to 10 hours
- Pulse on/off interval
- 1 second to 1 minute
- Generator (W × D × H)
- 17.5 × 28 × 9 in
- Electrical supply
- 230 V ±10%, 50/60 Hz, single phase, 30 A
- Converter cooling requirement
- Clean, dry air at approximately 10 psi, 5 cfm
- System components
- Generator, converter, booster, high-intensity probe, cables and wrench set
PARTS & ACCESSORIES
Available components

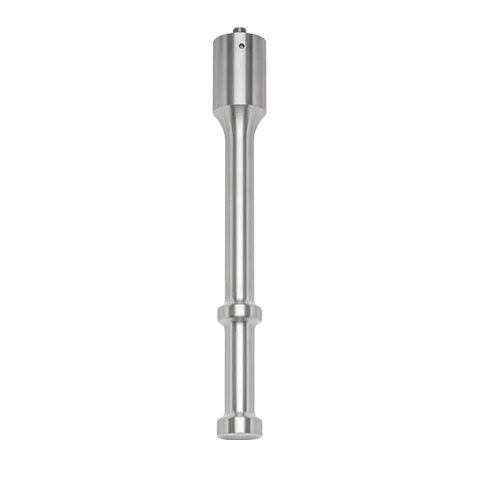

High-intensity probe
The standard high-intensity probe for the Q2500, also available as a replacement component.
GLEN MILLS APPLICATION SUPPORT
Discuss your sample and process.
Talk with our team about Q2500 Sonicator, sample volumes and available configurations.
