SIEVE SHAKERS

AS 200.
Tap Sieve Shaker.

The AS 200 tap is suitable for dry sieving with test sieves of 200 mm or 8“ diameter. The combination of horizontal, circular sieving motions with vertical taps reproduces the principle of hand sieving. The uniform mechanical action ensures reliable and reproducible measurement results.

Discuss this productTechnical information

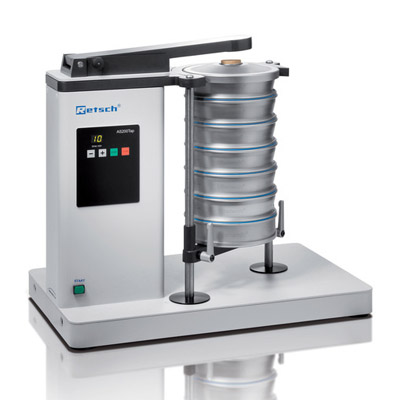

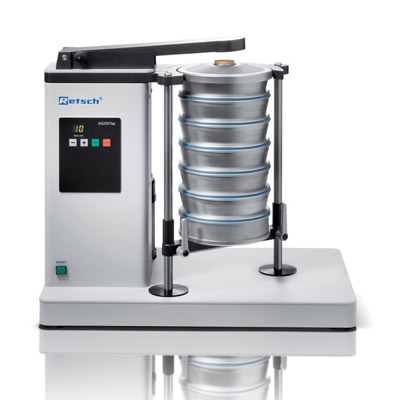

RETSCH AS 200 Tap Sieve Shaker for separating particles by size; front view
RETSCH AS 200 Tap Sieve Shaker for separating particles by size; front viewRETSCH AS 200 Tap Sieve Shaker for separating particles by size; in a sound-insulating cabinetRETSCH AS 200 Tap Sieve Shaker for separating particles by size; with sieve stack, side view showing the tapping armRETSCH AS 200 tap diagram showing horizontal circular motion combined with vertical taps

Product and configuration photographs. Select an image to enlarge.

Measuring range20 µm – 25 mm
Sieving motionhorizontal circular motion with taps
Max. batch / feed capacity3 kg
Speed280 min-1

THE PRODUCT IN FOCUS

Model overview

The AS 200 tap is suitable for dry sieving with test sieves of 200 mm or 8“ diameter. The combination of horizontal, circular sieving motions with vertical taps reproduces the principle of hand sieving. The uniform mechanical action ensures reliable and reproducible measurement results.

This special type of sieving motion used by the AS 200 tap is specified in various standards for particle size analysis of materials such as activated carbon, diamonds, spices, metal powders, abrasives or cement. Operating the AS 200 tap is exceptionally easy and safe. The integrated clamping device allows for sieve stacks with up to 7 or 13 fractions, depending on the height of the sieve frame. The sieving time is set from 1 to 99 minutes via a digital display. The number of rotations and taps is fixed; the tapping motion can be deactivated, if required. A safety switch and an anti-trap protection provide maximum safety. Thanks to an integrated interface, the AS 200 tap can be controlled with the evaluation software EasySieve®.

PERFORMANCE & OPERATION

Features. Operation. Handling.

Accuracy & Efficiency

  • Sieving with circular motion and vertical taps according to standards
  • Measuring range 20 μm to 25 mm
  • For 200 mm / 8“ sieves
  • Sieve stack up to 350 mm
  • Digital time setting
  • Integrated interface
  • Suitable for dry sieving

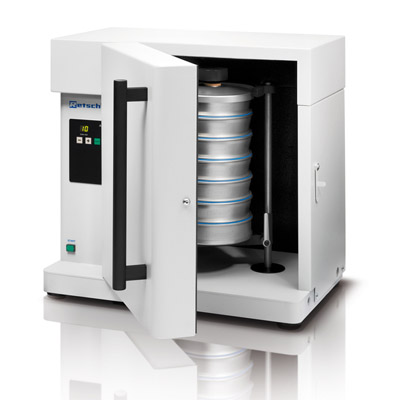

AS200 Tap With Optional Sound Enclosure

RETSCH AS 200 Tap Sieve Shaker for separating particles by size; in a sound-insulating cabinet
AS 200 Tap sieve shaker in a sound-insulating cabinet

FUNCTIONAL PRINCIPLE

In the AS 200 tap, mechanical action is applied to the test sieves in two dimensions. In addition to a horizontal circular motion with 280 oscillations, a vertical tapping motion with 150 taps per minute helps the particles to pass the sieve apertures. This combination of sieving motions simulates hand sieving. The number of oscillations and taps is independent of the power frequency which makes the sieving results of the AS 200 tap comparable world wide.

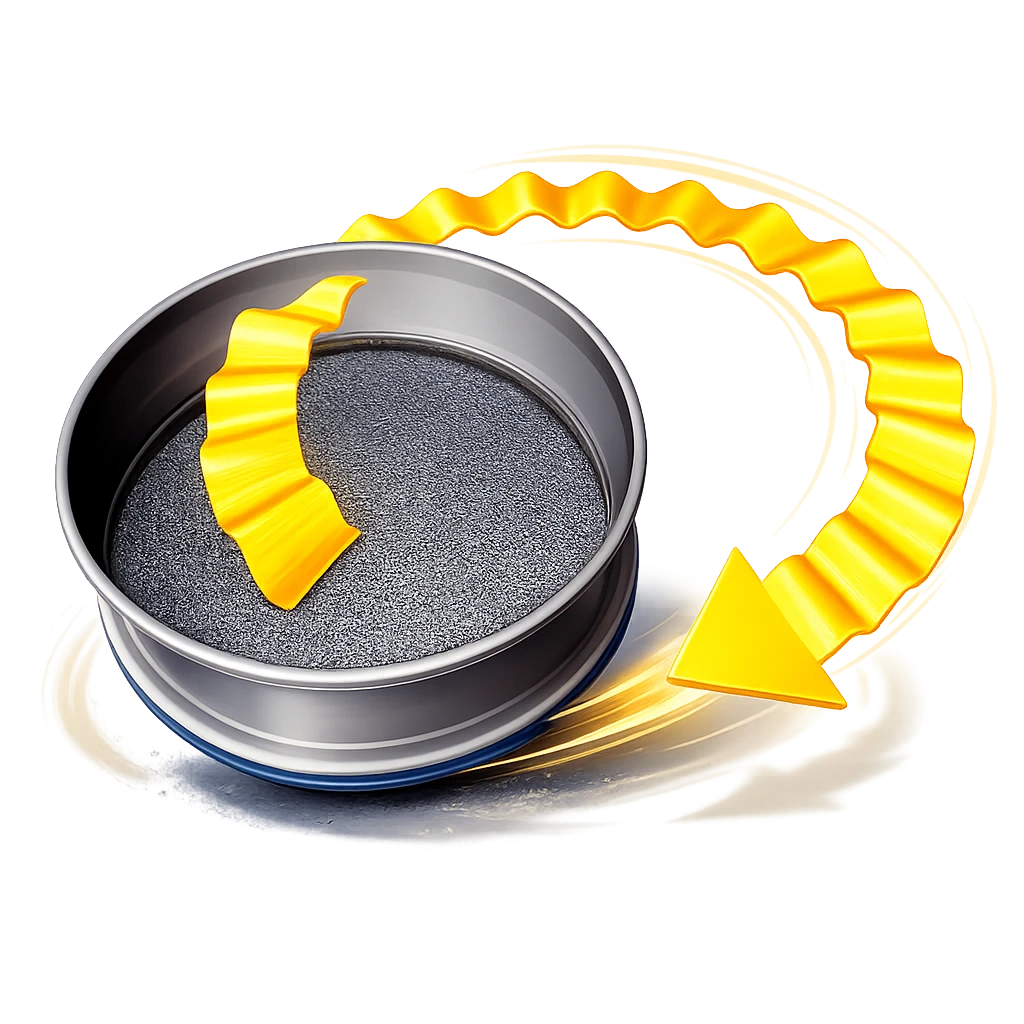

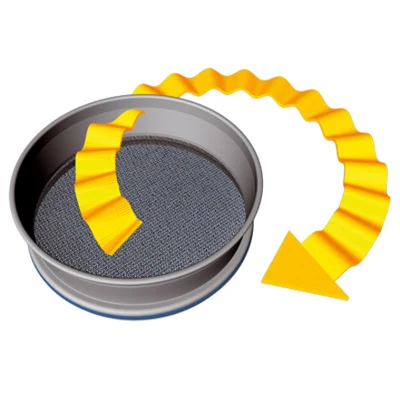

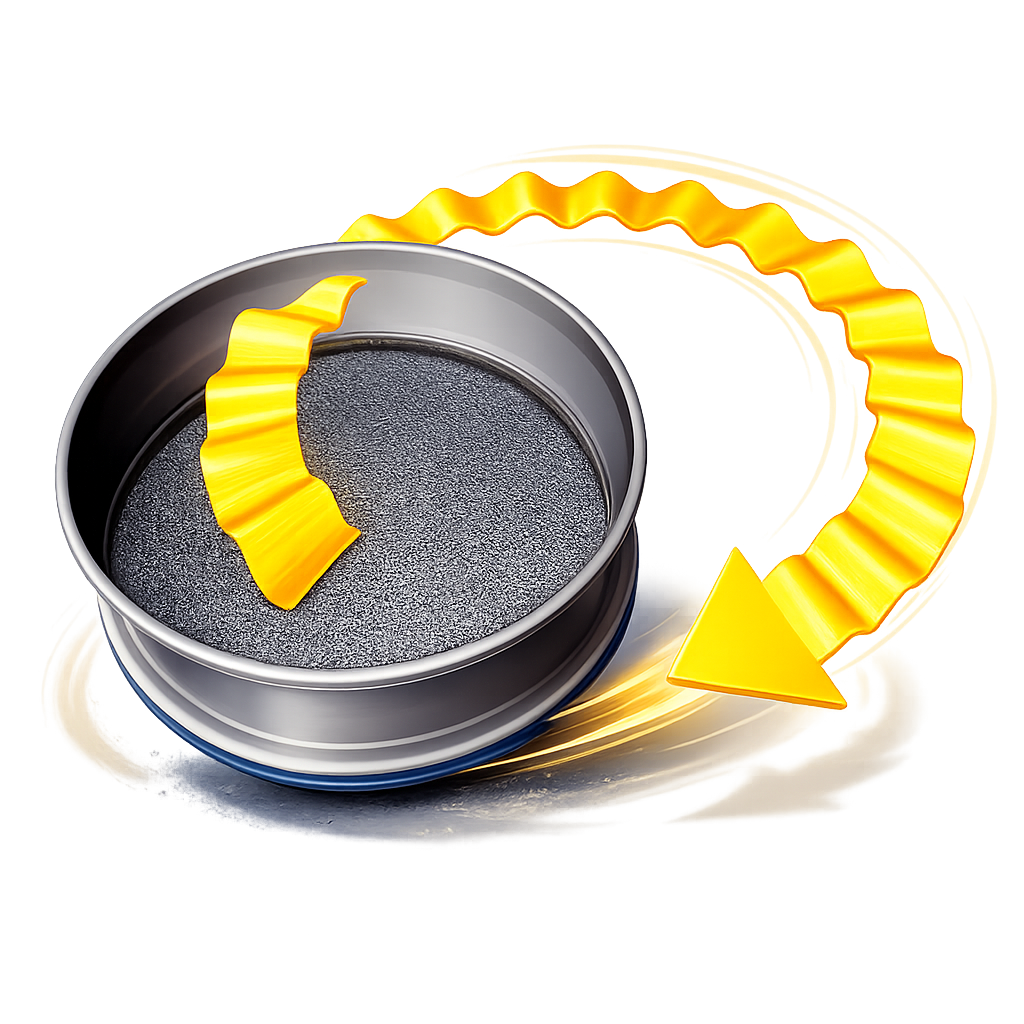

RETSCH AS 200 tap diagram showing horizontal sieve motion with vertical tapping

APPLICATIONS & METHODS

Build the process around the sample.

APPLICATION EXAMPLES

vibratory sieve shakers are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils and washing powder.

Fertilizers

Soil

Cereals

Construction Materials

Mixed granular sample for particle-size separation by sieving
Agricultural soil as a sample material for particle-size analysis
Mixed cereal flakes used as a sample for particle-size separation
Granular mineral sample used for particle-size separation by sieving

TOOLS & CONFIGURATION

The right tools for the task.

ACCESSORIES

sieve shakers can be equipped with a variety of accessories to meet a wide range of application requirements.

  • Clamping units

With the clamping devices the sieves are clamped safely, quickly and conveniently on the sieve shaker. The clamping devices “comfort” are particularly user-friendly and timesaving.

  • Accessories for test sieves

Collecting pans, intermediate pans, intermediate rings and sieve lids.

  • Accessories for wet sieving

Clamping lid with nozzle, collecting pans with outlet, venting rings.

  • Sieving Aids

Chain rings, brushes, cubes, balls (e.g. for reducing agglomerations when sieving particles < 100 μm and keeping the mesh free).

  • Sample Dividers

Meaningful results can only be obtained if the sample represents the original material. Sample dividers produce representative part samples, thus ensuring reproducibility of the analysis.

  • Ultrasonic baths and dryers

Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.

RETSCH sieve-shaker clamping lid for securing test-sieve stacks during separation
Clamping lid for vibratory sieve shakers
RETSCH stainless steel test sieves for separating samples into particle-size fractions
Two stainless steel analytical test sieves
RETSCH ultrasonic bath for cleaning analytical test sieves
ultrasonic bath for cleaning test sieves
RETSCH test-sieve stack accessories for clamping sieves and collecting particle fractions
Sieve stack accessories for vibratory sieve shakers

EASYSIEVE / CFR EVALUATION SOFTWARE

EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.

RETSCH EasySieve analysis software displaying particle-size distribution graphs and results

TECHNICAL INFORMATION

Specifications & reference data

TECHNICAL DATA

Applications separation, fractioning, particle size determination
Field of application agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material powders, bulk materials
Measuring range* 20 µm – 25 mm
Sieving motion horizontal circular motion with taps
Max. batch / feed capacity 3 kg
Max. number of fractions 7 / 13
Max. mass of sieve stack 6 kg
Speed 280 min-1
No. of taps 150 min-1
Time display digital, 1 – 99 min
Suitable for dry sieving yes
Suitable for wet sieving no
Serial interface yes
Including test certificate / can be calibrated no
Suitable sieve diameters 200 mm / 203 mm (8″)
Max. height of sieve stack 380 mm
Protection code IP 40
Electrical supply data different voltages
Power connection 1-phase
Power consumption 315 VA
W x H x D 700 x 640 x 450 mm / with sound enclosure cabinet: 700 x 670 x 520 mm
Net weight ~ 68 kg / with sound enclosure cabinet: ~ 92 kg

*depending on feed material and instrument configuration/settings
