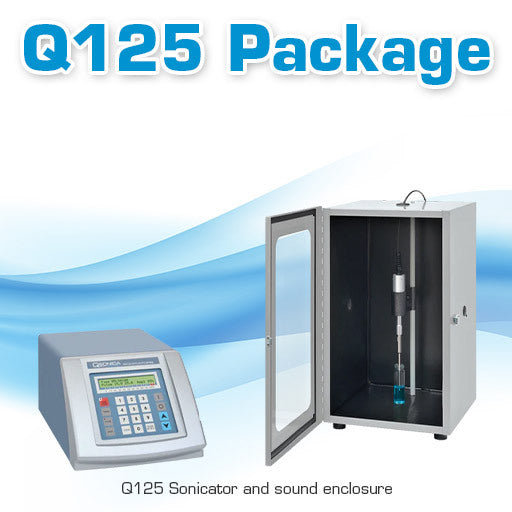

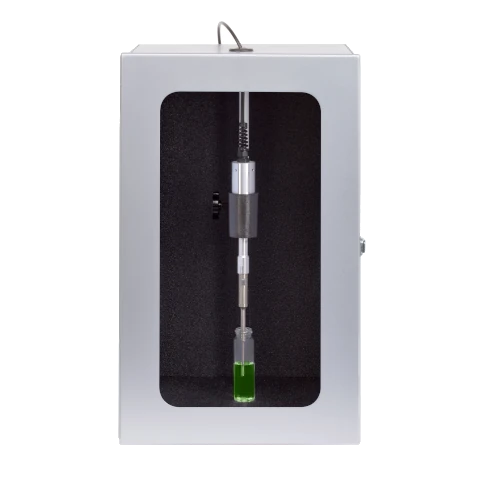

Sound enclosure
Acoustic enclosure with approximately 20 dBA noise reduction, internal support rod and converter mount, water-resistant acoustic lining, viewing window and coolant ports. Exterior: 12 W × 12 D × 20 H in.

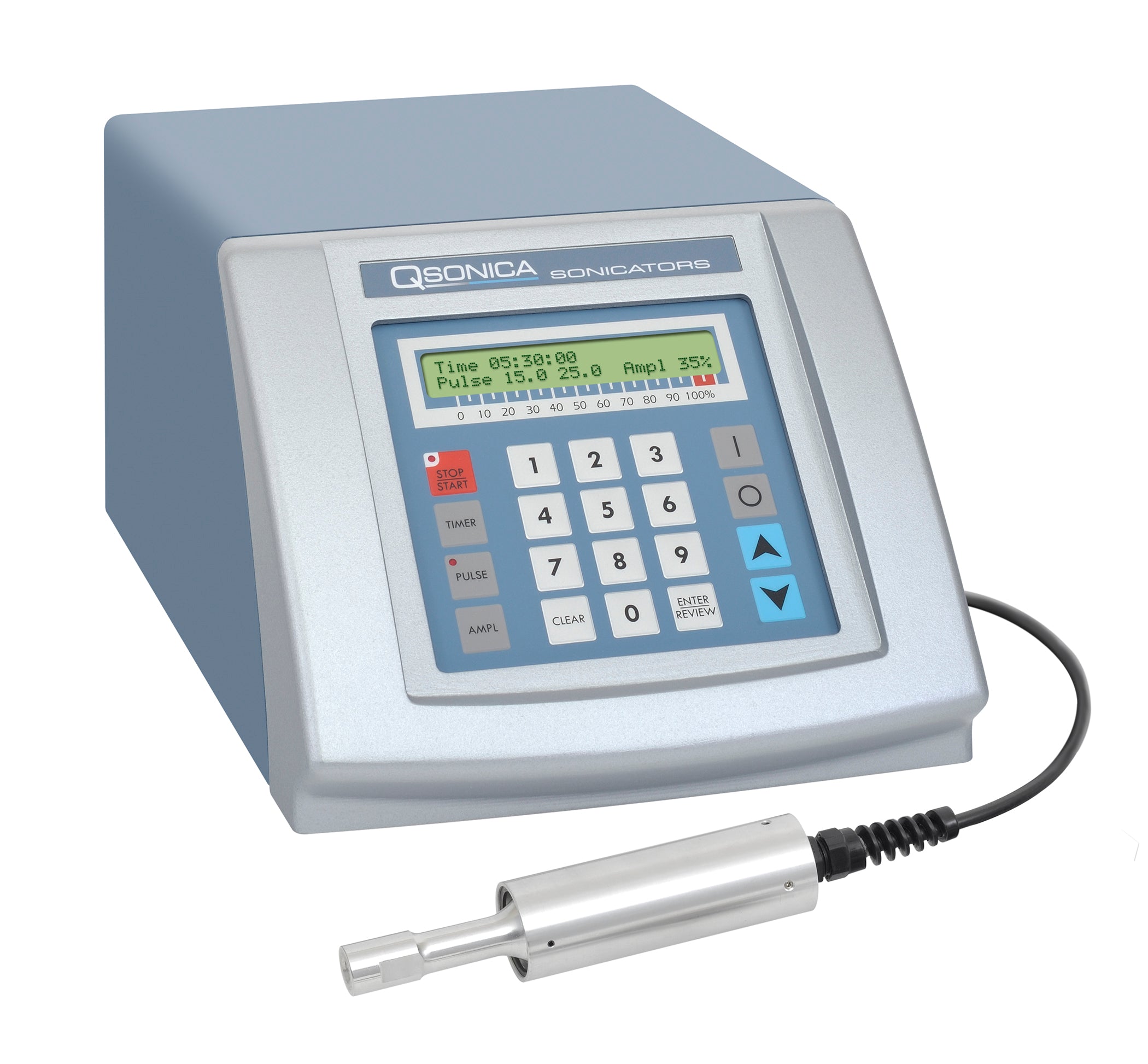

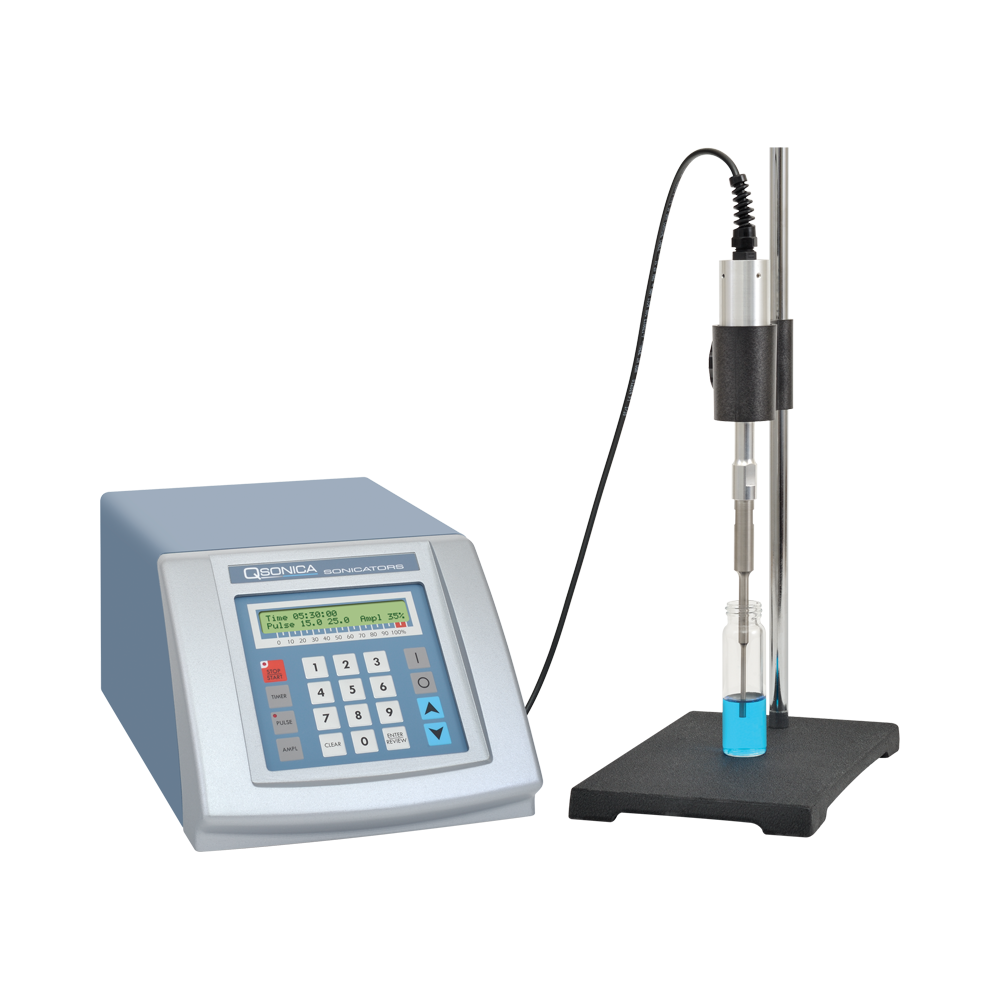

Programmable small-volume ultrasonic processor
Q125 Sonicator
A compact 125 W system for samples up to 50 mL, combining programmable timing, pulsed output and digital energy monitoring.
PRODUCT OVERVIEW
Ultrasonic processing.
Matched to your sample.
The Q125 brings the programming and display functions of the Q500 into a smaller instrument intended for low-volume work. Applications include cell disruption, DNA and RNA shearing, homogenization and other small-sample processes.
A standard 1/8 in probe is included, and alternative probe or horn configurations are available. The system suits laboratories whose sample requirements remain within the small-volume range rather than workflows requiring later expansion to large batches.
Digital control covers amplitude and processing duration. The display reports elapsed sonication time, watts and joules, while pulse mode supports work with temperature-sensitive samples.
CAPABILITIES
Features
- Programmable processing time and amplitude
- Pulsed output for temperature-sensitive samples
- Elapsed time, power in watts and energy in joules displayed during processing
- Fault detection and overload protection
- Digital intensity adjustment from 20% to 100%
- Compact generator footprint
- Lead-free, RoHS-compliant construction
APPLICATION FIT
Where it works
- Small-volume cell disruption
- DNA and RNA shearing
- Homogenization
- Biological sample preparation
Processing capacity depends on sample properties, tube or vessel geometry and the selected probe or rack.
TECHNICAL DETAILS
Specifications
- Rated power
- 125 W
- Frequency
- 20 kHz
- Volume
- Up to 50 mL
- Amplitude range
- 20-100%
- Timer
- Up to 10 hours
- Pulse on/off interval
- 1 second to 1 minute
- Generator (W × L × H)
- 8 × 13.75 × 5.75 in
- Electrical supply
- 110 V, 50/60 Hz; 220 V configuration also available
- Standard probe
- 1/8 in diameter
- System components
- Generator, converter, power and converter cables, wrench set, standard probe
System views
PARTS & ACCESSORIES
Available components

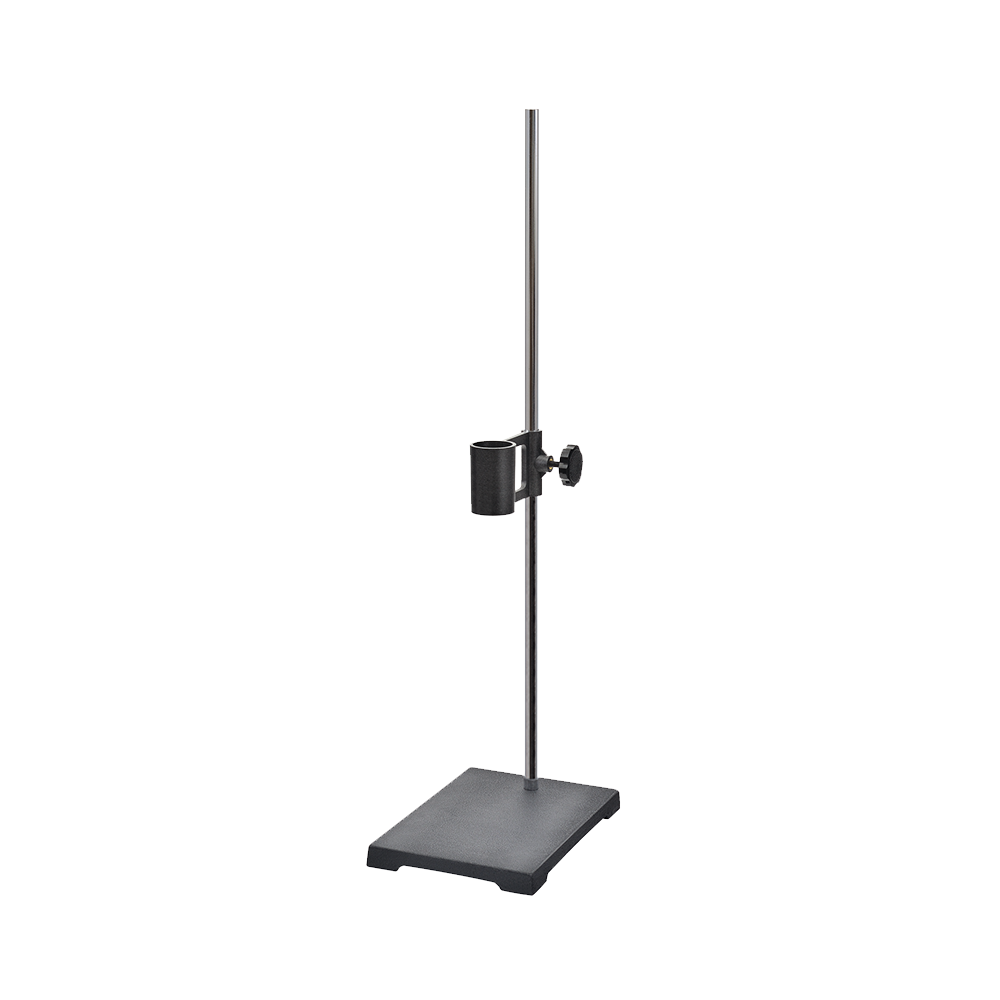

Support stand with converter holder
Fixed-position converter support with a 24 in rod and a 5.75 × 8.5 in base.

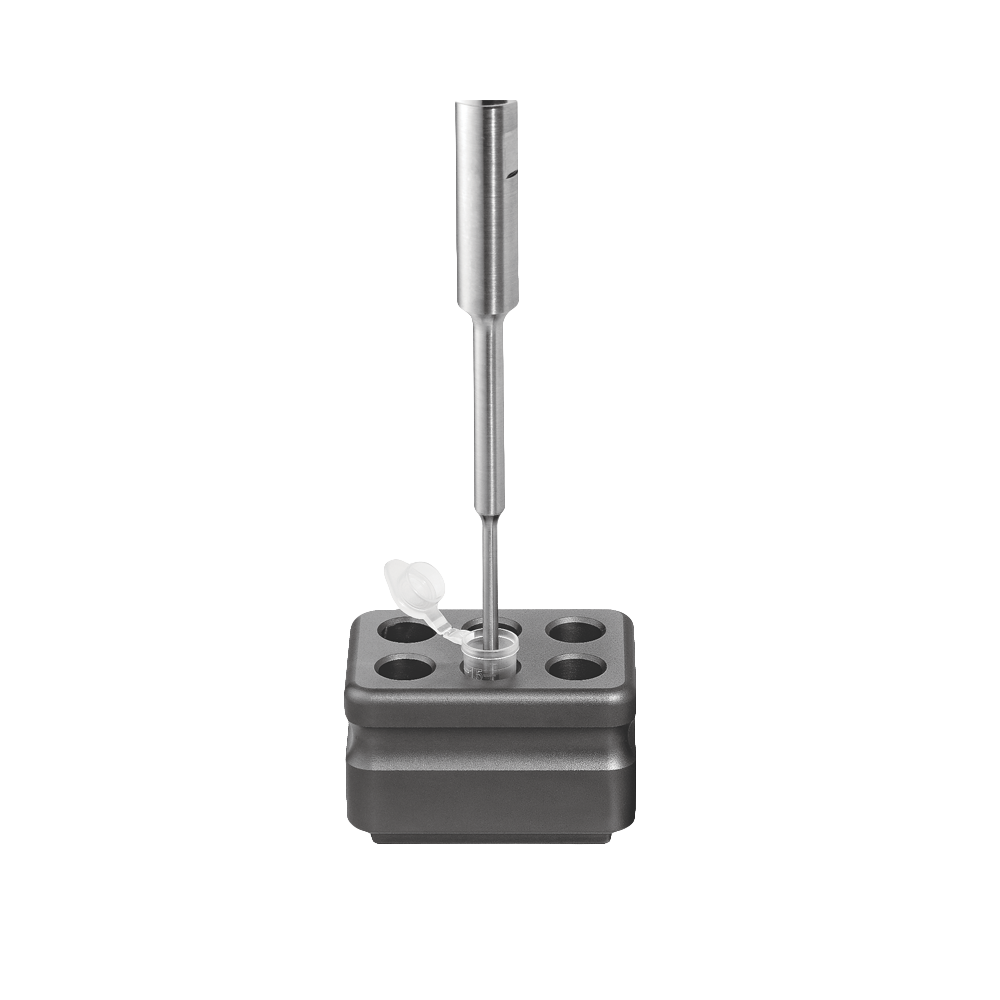

Thermoconductive tube racks
Temperature-stabilizing modules for microtubes and 15 or 50 mL tubes. Available formats include 4, 6, 15 or 24 microtube positions, nine 15 mL positions and four 50 mL positions. Hard-anodized construction; temperature-source range -196°C to +100°C.
GLEN MILLS APPLICATION SUPPORT
Discuss your sample and process.
Talk with our team about Q125 Sonicator, sample volumes and available configurations.
