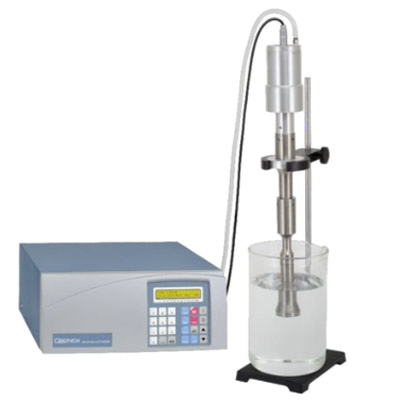

The Q2000 offers the ability to process large volumes in individual batches or flow through applications. This model includes a high amplitude (100um), 1.5″ diameter probe and booster. The Q2000 is powerful, durable and customizable. The Q2000 with standard probe is recommended for 5-20L samples. Routine applications include emulsification, cell lysis, degassing, homogenization, solubilizing, deagglomerating and dispersing.
2 additional probe sizes (½” and 1” diameter) are available to accommodate smaller volumes. This enables the Q2000 system to be used for small R&D batches and can be scaled up to production volumes.
For continuous processing applications we offer the Q2000FCE model. This package includes the Sonicator, flocell, flocell probe, booster and chiller.
The Q2000 Sonicator allows the user to program processing times and a full range of intensity settings. Processing time can be set from 1 second to 10 hours. A pulsing feature is standard. Pulsing can reduce the amount of heat generated by sonication when processing temperature sensitive samples. A temperature monitoring probe option is also available.
Note: Air cooling of the Converter by a compressed air source is required. The user must provide approximately 10psi (5 cfm) of clean, dry air to prevent overheating of the Sonicator.
Processing volumes are application specific. There are many variables (viscosity, concentration, etc.) that can affect the min/max processing volumes and processing times.
Probes are consumable items which release particulate and require replacement over time. Post processing sample filtration is recommended.
Process liquid tank, pump, valves, tubing and compressed air source are application specific and supplied by the operator.
PROGRAMMABLE OPERATION
Set time and amplitude for hands free operation
PULSE MODE
Prevent heat buildup in temperature sensitive samples
DIGITAL AMPLITUDE / INTENSITY CONTROL
Output intensity can be set from 20-100%
ELAPSED TIME INDICATOR
Displays duration of sonication
DISPLAY OF WATTAGE AND JOULES
Real-time energy monitoring
OVERLOAD PROTECTION
Prevents damage to circuitry if a fault occurs
TEMPERATURE MONITORING
Optional temperature probe
| Power Rating | 2,000 Watts |
| Frequency | 20 kHz |
| Programmable Timer | 10 Hours |
| Adjustable Pulse On/Off | 1 second to 1 minute |
| Dimensions | 7″ H x 15″ W x 18.25″ D |
| Voltage | 230V, 50/60Hz |
The Q2000 requires a fused, single phase 3-terminal grounding type electrical outlet capable of supplying 230 +/- 10% VAC, 50/60 Hz, 20 amps.
The Q700 is the most technologically advanced sonicator available today. A state-of-the-art touch screen interface offers intuitive control and provides a user-friendly experience. The most important feature of a Sonicator is reproducibility. Improved internal circuitry guarantees more efficient operation, sample-to-sample consistency and most importantly, a reliable end result.
The Q700 is the only sonicator on the market that offers full amplitude control from 1-100%. This enables greater control of the probe’s intensity, helping to pinpoint the optimum settings for efficient sample processing. We have increased maximum power output to 700 watts making the system more durable and capable of handling even larger samples if necessary. Our new display, design improvements and added accessories make this the most sophisticated and versatile Sonicator available today.
The Q55 is a compact and cost effective ultrasonic processor that will occupy less bench space than any unit on the market.
This model is effective for standard cell disruption and many other small volume applications. Probes are available in three different sizes.
The Q800R3 is our 2nd generation DNA and Chromatin shearing system. Improvements include an enhanced user-friendly design and quieter operation while remaining thousands of dollars less than the competition.
Samples can be sheared to a range of fragment sizes (150bp – 3kb). The system is compatible with commercially available sample tubes and is capable of processing up to 18 samples at one time. Multiple tube rack options can accommodate 50ul – 1ml sample volumes using a variety of standard sample tubes.
The Q800R3 is a complete package including a chiller to control temperature, digital operating system with programmable memory, high intensity ultrasonics and sound reducing enclosure.
The Q500 is a powerful ultrasonic processor featuring programmable operation and a digital display of operating parameters. Popular applications include nanoparticle dispersion, creating emulsions, cell lysis and homogenization.
Adjustable pulse On and Off times can be programmed from 1 second to 1 minute. Total programming has a maximum setting of 10 hours. A wide variety of probes and accessories are available to handle virtually any application.
