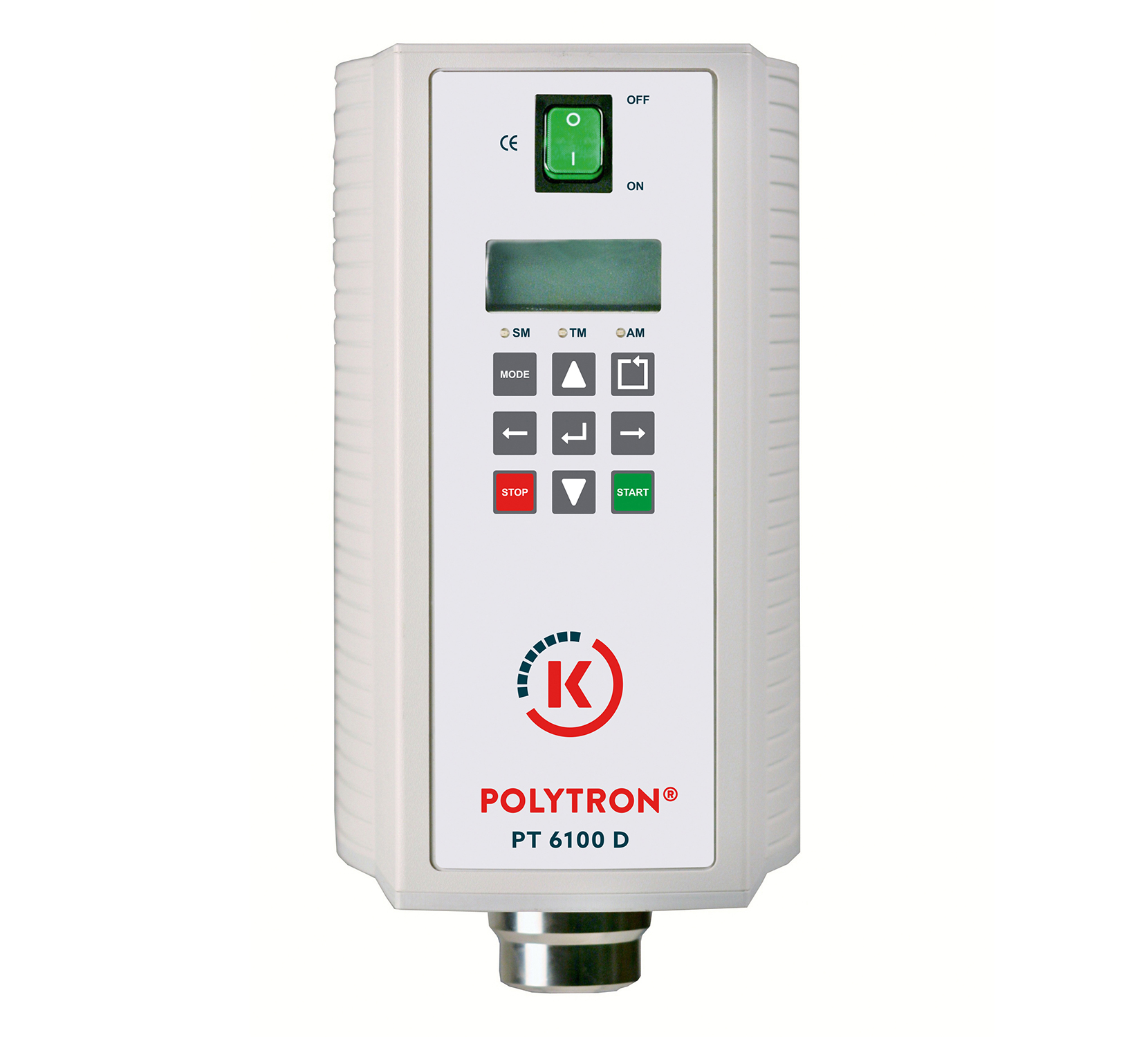

Kinematica Polytron PT 6100 D


Stand-disperser (High-End Line), powerful, flexibile-use disperser with power cable, PC software, RS-232 / USB connection cable (100 – 120 V)

This instrument meets the highest standards of reproducibility and scaling up and the reserve ­capacities of this motor enable the handling of larger quantities without any decline in quality. The fully ­digitized control and regulation system is very easy to operate. The illuminated LCD displays all required parameters which can be adjusted if necessary, with the membrane keypad.

BENEFITS

Ergonomics

– Easy operation with an on–off switch and membrane keypad
– Digital speed control for long equipment life
– Protection against overheating, overload and blocking
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Aggregates quickly switched with Click & Go coupling
– Easy aggregate clean–up with EasyClean Design

Results are convincing

– Smallest sizes of particles/droplets because precise ­analysis require homogeneous samples
– Efficient sample preparation because fast dispersion saves time
– Standard or custom-made aggregates perfected for and in cooperation with the users
– Cleaning and disassembly EasyClean Design makes it very simple
– Quick coupling of the aggregates by using Click & Go
– Best materials available because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

Category:

TECHNICAL INFORMATION

– Min. Volume (ml) = 0.1
– Max. Volume (ml) = 30000
– Power (W) = 1700
 -Tip speed = Up to max. 32 m/s
– Applicable aggregates = ø 5 mm to 65 mm
– Speed range = 500 – 26 500 rpm
– Drive coupling = Aggregates with F coupling
– Noise level (drive without aggregate) = 82 dB(A) at 26 500 rpm
– Motor = Universal with carbon brushes
– Connection voltage = 110 – 230 V ± 10 %, 50Hz / 60Hz
– Relative humidity (max.) = 80 % during storage / 80 % during operation
– Operating temperature = 0 – 40 °C
– PC Interfaces = RS-232 (D SUB 9) / USB socket B
– Protection class acc. to DIN = IP 20
– Dimensions (LxWxH) = Drive: 235 x 164 x 313 mm
– Weight = Drive: 7.4 kg
– EMC standards = IEC / EN 61000-6-2 / EN 61000-6-3
– Safety standard = IEC / EN 61010-2-51
