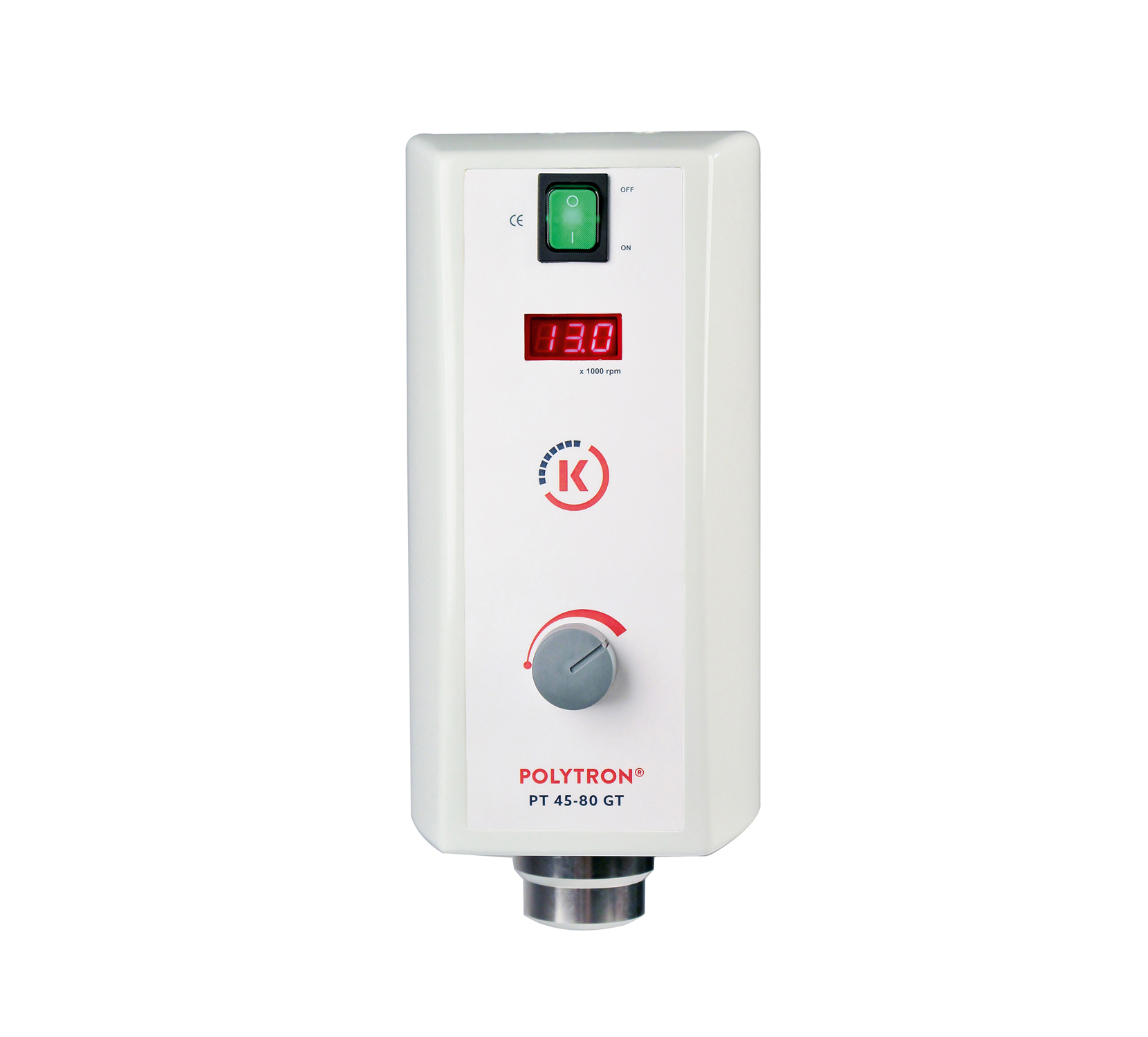

Kinematica Polytron PT 45-80 GT


Powerful stand-disperser (Ecoline), flexible-use disperser with power cable (100 – 120 V)

With this powerful drive unit, with continuous speed control, high tip speeds and a lot of different and exchangeable POLYTRON® dispersing aggregates, the low-cost system PT 45-80 GT offer you a solution for a wide range of dispersing and mixing applications.

BENEFITS

Ergonomics

– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Protection against overheating, overload and blocking
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design

Results are convincing

– Smallest sizes of particles / droplets: because precise ­analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

Category:

TECHNICAL INFORMATION

– Min. Volume (ml) = 0.1
– Max. Volume (ml) = 30000
– Power (W) = 1700
– Tip speed = Up to max. 32 m/s
– Applicable aggregates = ø 5 mm to ø 65 mm
– Speed range = 500 – 21 000 U/min
– Drive coupling = Aggregates with F coupling
– Noise level (drive without aggregate) = 85 dB(A) at 21 000 rpm
– Motor = Universal with carbon brushes
– Connection voltage = 110 – 230 V ± 10 %, 50Hz / 60Hz
– Relative humidity (max.) = 80 % during storage / 80 % during operation
– Operating temperature = 0 – 40 °C
– Protection class acc. to DIN = IP 20
– Dimensions (LxWxH) = Drive: 140 x 185 x 270 mm
– Weight = Drive: 7 kg
– EMC standards = IEC / EN 61000-6-2 / EN 61000-6-3
– Safety standard = IEC / EN 61010-2-51
