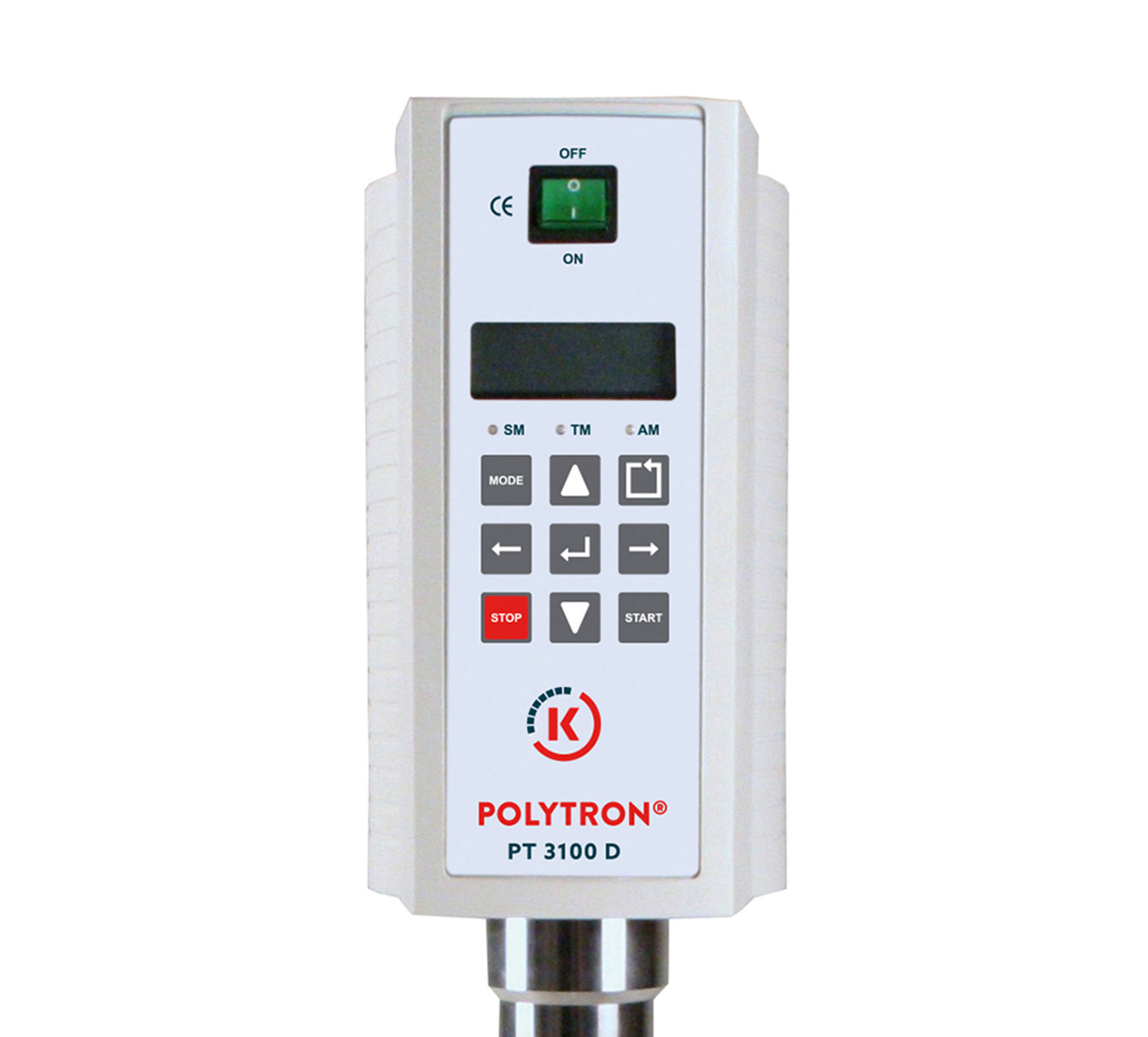

Kinematica Polytron PT 3100 D


Stand-disperser (High-End Line), flexibile-use disperser with power cable, PC software, RS-232 / USB connection cable (100 – 120 V)

Applications with the highest demands for reproducibility and scaling up can be efficiently performed with this device. The fully digitized control and regulation system is very easy to operate. The illuminated LCD display shows all the parameters, which can be changed with the membrane keypad.

BENEFITS

Ergonomics

– Easy operation with an on–off switch and membrane keypad
– Digital speed control for long equipment life
– Protection against overheating, overload and blocking
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Aggregates quickly switched with Click & Go coupling
– Easy aggregate clean–up with EasyClean Design

Results are convincing

– Smallest sizes of particles / droplets: because precise ­analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

TECHNICAL INFORMATION

Category:

TECHNICAL INFORMATION

– Min. Volume (ml) = 0.1
– Max. Volume (ml) = 10000
– Power (W) = 1200
– Tip speed = Up to max. 32 m/s
– Applicable aggregates = ø 5 mm to 36 mm
– Speed range = 500 – 30 000 rpm
– Drive coupling = Aggregates with F coupling
– Noise level (drive without aggregate) = 66 dB(A) at 25 000 rpm / 73 dB(A) at 30 000 rpm
– Motor = Universal with carbon brushes
– Connection voltage = 110 – 230 V ± 10 %, 50Hz / 60Hz
– Relative humidity (max.) =  80 % during storage / 80 % during operation
– Operating temperature = 0 – 40 °C
– PC Interfaces = RS-232 (D SUB 9) / USB socket B
– Protection class acc. to DIN = IP 20
– Dimensions (LxWxH) = Drive: 240 x 130 x 265 mm
– Weight = Drive: 3.9 kg
– EMC standards = IEC / EN 61000-6-2 / EN 61000-6-3
– Safety standard = IEC / EN 61010-2-51
