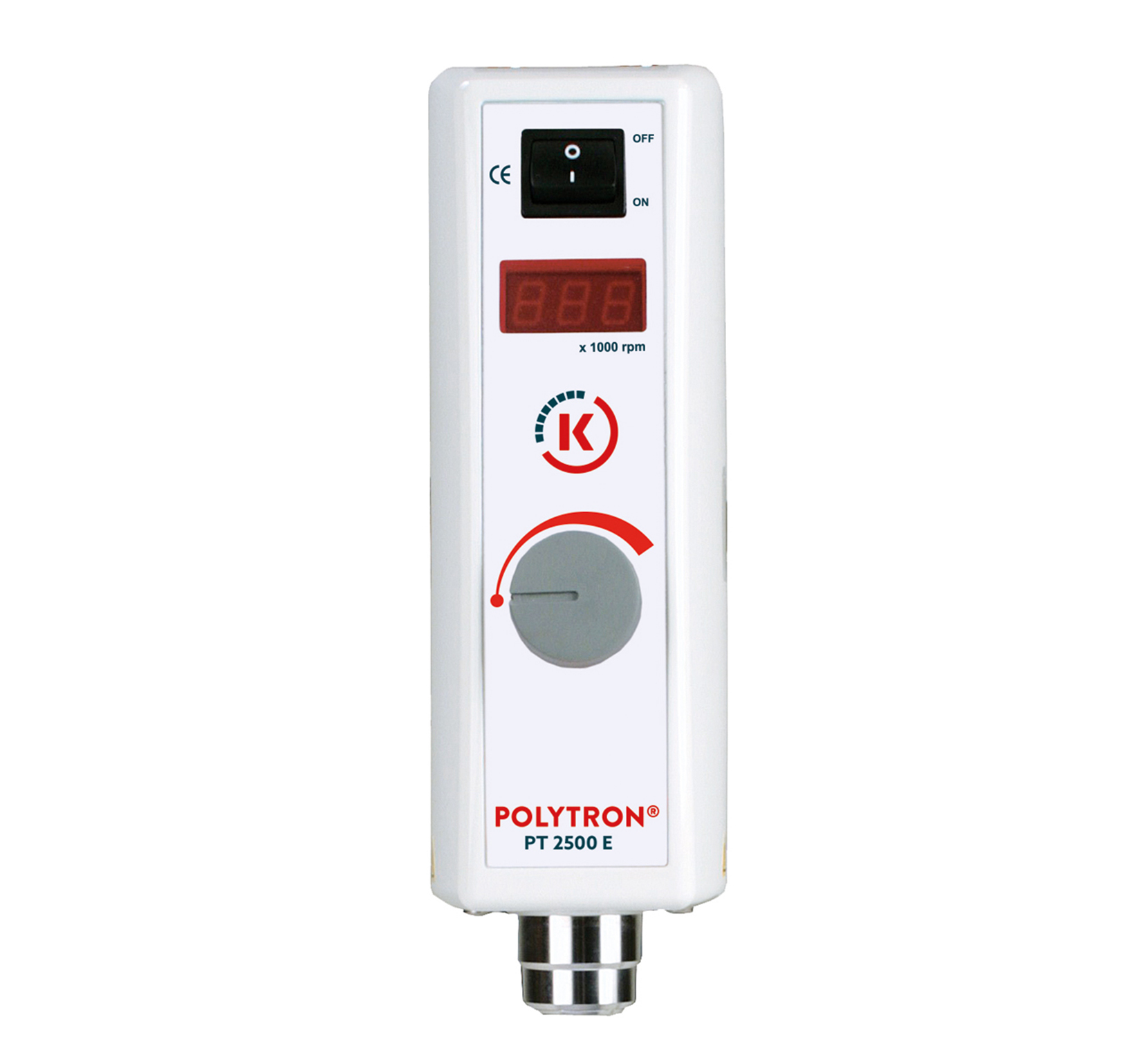

Kinematica Polytron PT 2500 E


Stand Dispersing Device (Ecoline), dispersing devices for budget conscious labs with power cable (100 – 120 V)

The sleek, sound-insulated casing conceals enough power to safely and quickly handle a variety of applications. Our broad range of dispersing aggregates cover the range from preparing samples to testing product formulas and recipes.

BENEFITS

Ergonomics

– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design

Results are convincing

– Smallest sizes of particles / droplets: because precise ­analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

Category:

TECHNICAL INFORMATION

– Min. Volume (ml) =0.05
– Max. Volume (ml) = 2500
– Power (W) = 500
– Tip speed = Up to max. 26 m/s
– Applicable aggregates = ø 3 mm to ø 25 mm
– Speed range = 500 – 30 000 rpm
– Drive coupling = Aggregates with E coupling
– Noise level (drive without aggregate) = 66 dB(A) at 25 000 rpm / 72 dB(A) at 30 000 rpm
– Motor = Universal with carbon brushes
– Connection voltage = 90 – 230 V ± 10 %, 50Hz / 60Hz
– Relative humidity (max.) = 80 % during storage / 80 % during operation
– Operating temperature = 0 – 40 °C
– Protection class acc. to DIN = IP 20
– Dimensions (LxWxH) = Drive: 157 x 76 x 234 mm
– Weight = Drive: 1800 g
– EMC standards = IEC / EN 61000-6-2 / EN 61000-6-3
– Safety standard = IEC / EN 61010-2-51
