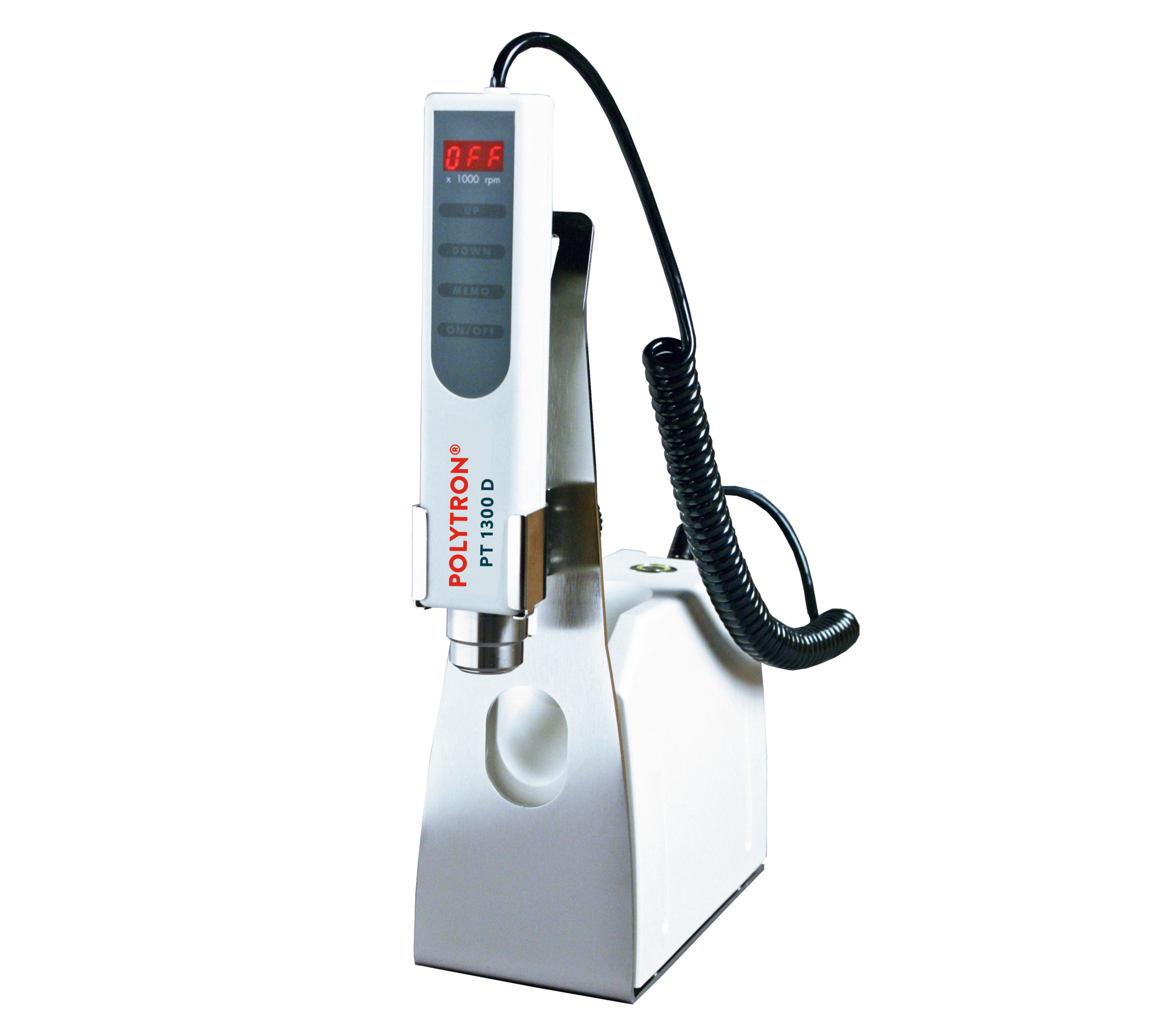

Kinematica Polytron PT 1300 D


High-end handheld disperser, state-of-the-art digital technology with PC software, USB connection cable and aggregate bracket with power cable (120 – 120 V)

Research, development or quality control, all work towards a common goal: Sample analysis. The basic requirements for an impending sample preparation is the efficient disruption of systems, reproducibility of the results, and simple procedures.

BENEFITS

Ergonomics

– ON & OFF and speed control by simply pressing a button
– The drive rests comfortably in the palm of your hand
– The membrane keyboard is easy to operate and to clean
– Changing the aggregate is easy with the Click & Go quick release
– The EasyClean Design makes cleaning the aggregates simple
– Low noise level

Intelligent Control System

– Intelligent speed controls ensure a long service life
– Stable motor speeds even during changes of viscosity
– Using the MEMO button lets you save engine speeds and provides you with the option to recall and reproduce the setting later in order to process larger numbers of samples.
– The supplied PC software offers a remote control option or the recording of specific application parameters.

Results are convincing

– Smallest sizes of particles / droplets because precise ­analysis require homogeneous samples
– Efficient sample preparation because fast dispersion saves time
– Standard or custom-made aggregates perfected for and in cooperation with the users
– Cleaning and disassembly EasyClean Design makes it very simple
– Quick coupling of the aggregates by using Click & Go
– Best materials available because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

Category:

TECHNICAL INFORMATION

  • Min. Volume (ml) – 0.05
  • Max. Volume (ml) – 250
  • Power (W) – 100
  • Tip speed – Up to max. 14 m/s / Up to max. 21 m/s (X-Aggregate)
  • Applicable aggregates – ø 3, 5, 7, 12 mm / ø 20 mm X-Design
  • Speed range – 2000 – 30 000 rpm
  • Drive coupling  – Aggregates with E coupling
  • Noise level (drive without aggregate) – 65 dB(A) at 30 000 rpm
  • Motor – Brushless, maintenance-free
  • Connection voltage – 90 – 230 V ± 10 %, 50Hz / 60Hz
  • Relative humidity (max.) – 80 % during storage / 80 % during operation
  • Operating temperature – 0 – 40 °C
  • PC Interfaces – RS-232 (D SUB 9) / USB socket B
  • Protection class acc. to DIN – IP 20
  • Dimensions (LxWxH) – Drive: 210 x 40 x 45 mm / Control module: 230 x 205 x 95 mm
  • Weight – Drive: 620 g / Control module: 1040 g
  • EMC standards – IEC / EN 61000-6-2 / EN 61000-6-3
