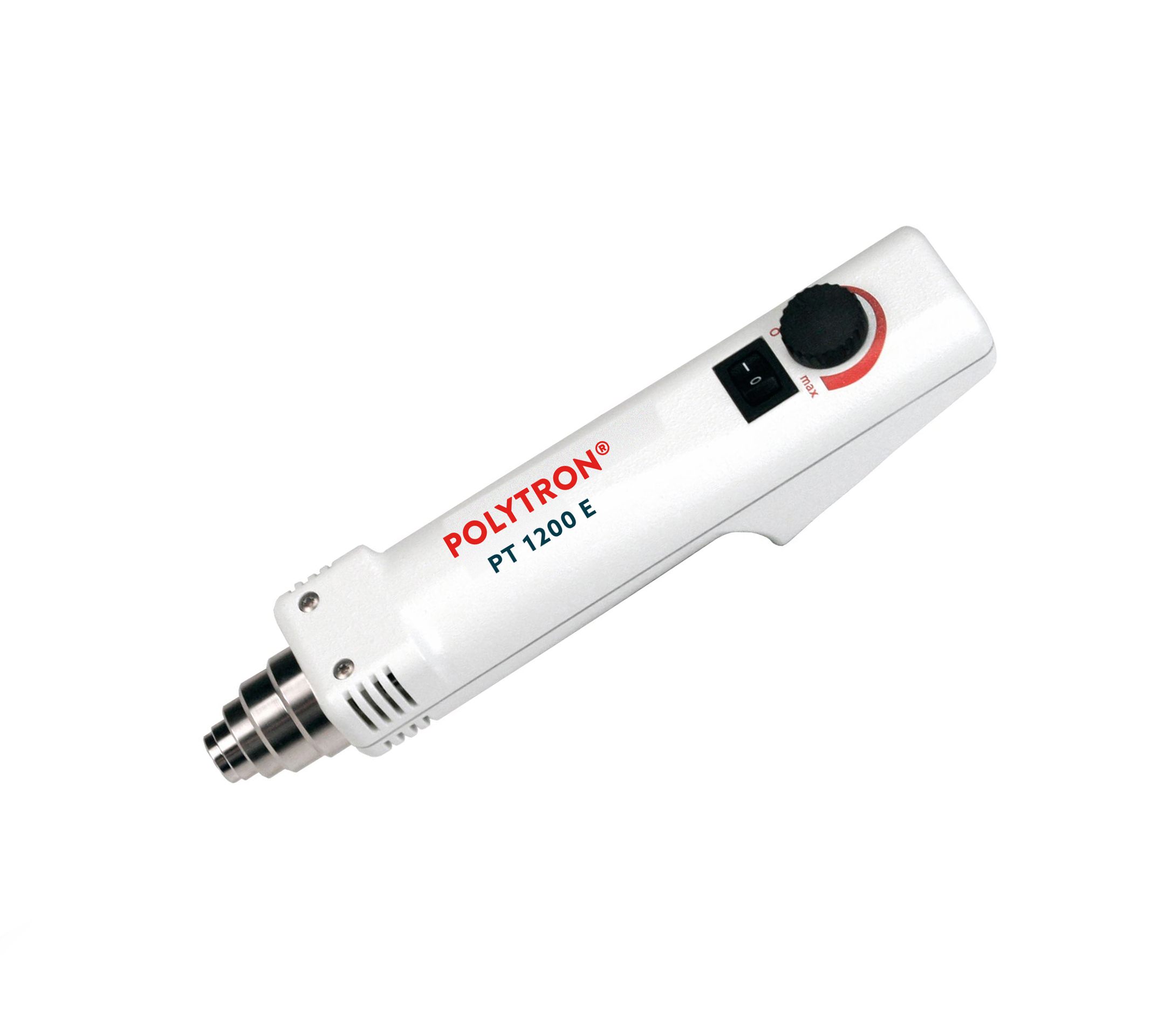

Kinematica Polytron PT 1200 E


Hand Disperser (Ecoline), dispersing devices for budget-conscious labs with power cable and tabletop power supply (1.8 m) (100 – 120 V

This ergonomic hand disperser is lightweight and therefore ideal for rapid turnaround of smaller sample volumes. The extensive range of dispersing aggregates covers a wide range of sample preparation applications.

BENEFITS

Ergonomics

– Easy operation with an on-off switch and speed control
– Lightweight
– Intelligent variable speed control for long equipment life
– Low noise
– Height adjustable stand (available as an option)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design

Results are convincing

– Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean design makes it very simple
– Quick coupling of the aggregates: by using Cick & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue

Category:

TECHNICAL INFORMATION

  • Min. Volume (ml) = 0.05
  • Max. Volume (ml) = 250
  • Power (W) = 100
  • Tip speed = Up to max. 14 m/s / Up to max. 21 m/s (X-Aggregate)
  • Applicable aggregates = ø 3, 5, 7, 12 mm / ø 20 mm X-Design
  • Speed range = 0 – 25 000 rpm
  • Drive coupling = Aggregates with E coupling
  • Noise level (drive without aggregate) = ≤ 65 dB(A) at 20 000 rpm / ≤ 76 dB(A) at 25 000 rpm
  • Motor = Universal with carbon brushes
  • Connection voltage = 90 – 230 V ± 10 %, 50Hz / 60Hz
  • Relative humidity (max.) = 80 % during storage / 80 % during operation
  • Operating temperature = 0 – 40 °C
  • Protection class acc. to DIN = IP 20
  • Dimensions (LxWxH) = Drive: 220 x 44 x 55 mm / Power supply: 132 x 58 x 30 mm
  • Weight = Drive: 440 g / Power supply: 310 g
  • EMC standards = IEC / EN 61000-6-2 / EN 61000-6-3
  • Safety standard
