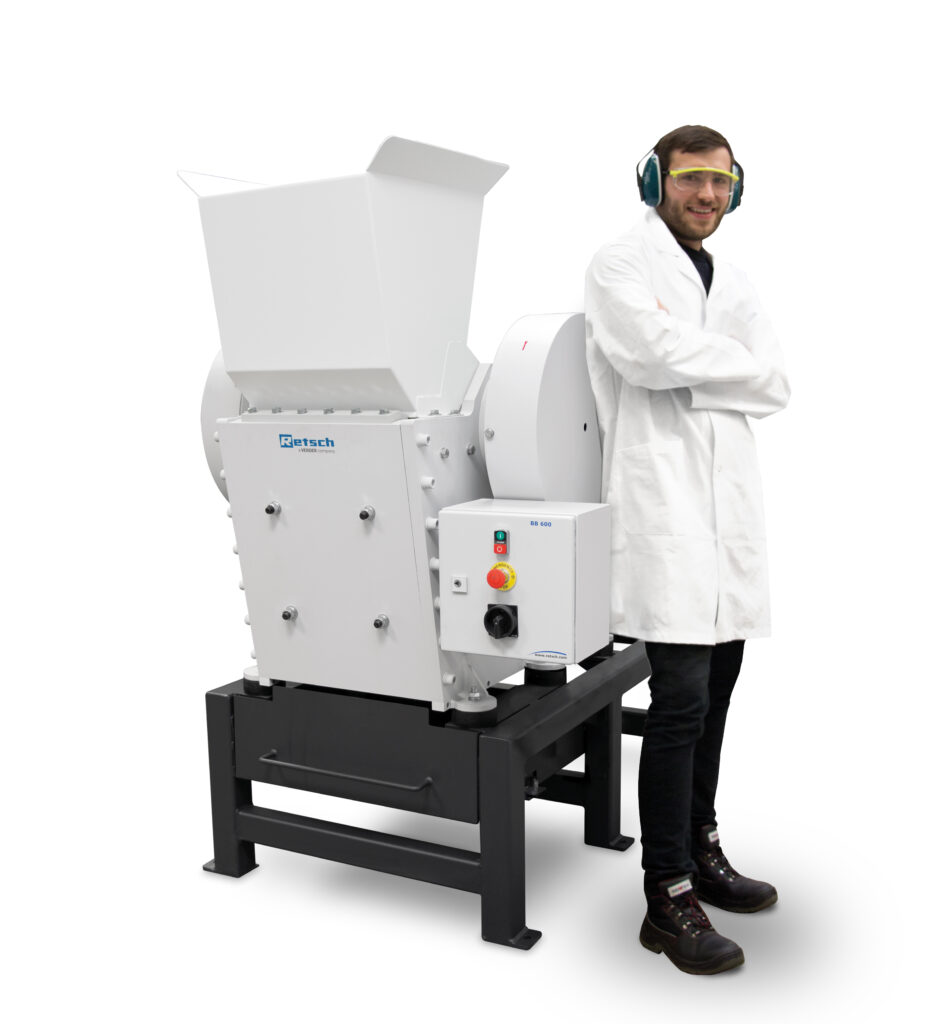

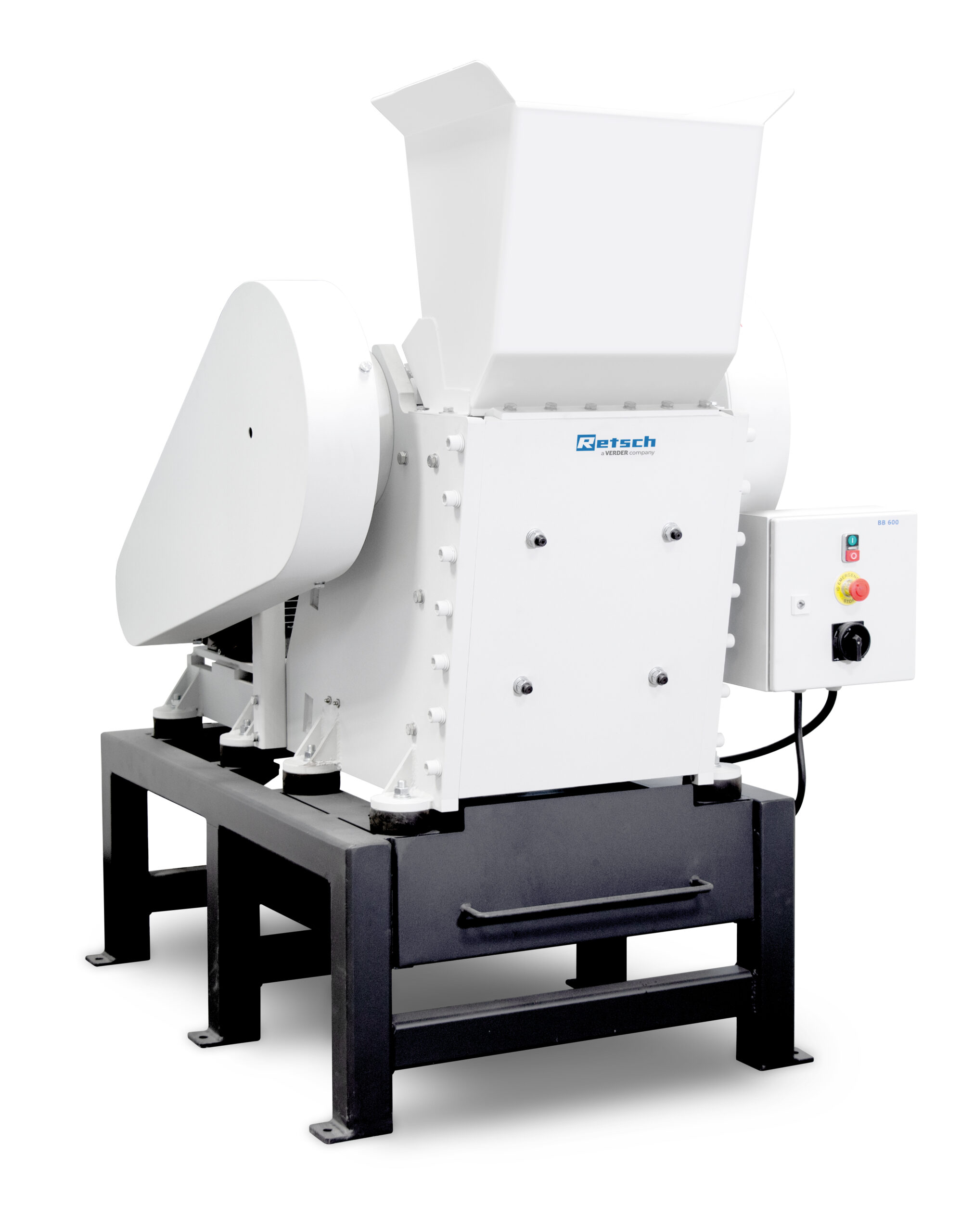

BB 600 Jaw Crusher


The Jaw Crusher BB 600 is used for rapid, effective, crushing and pre-crushing of medium-hard, hard, brittle and tough materials.

Due to the low installation height (1 m), the BB 600 is ideally suited for continuous operation in automatic installations and sampling stations. Thanks to the compact design of the BB 600 it may replace a jaw crusher in existing installations.

Small sample amounts with large particle sizes can be crushed batch-wise in the Jaw Crusher BB 600.

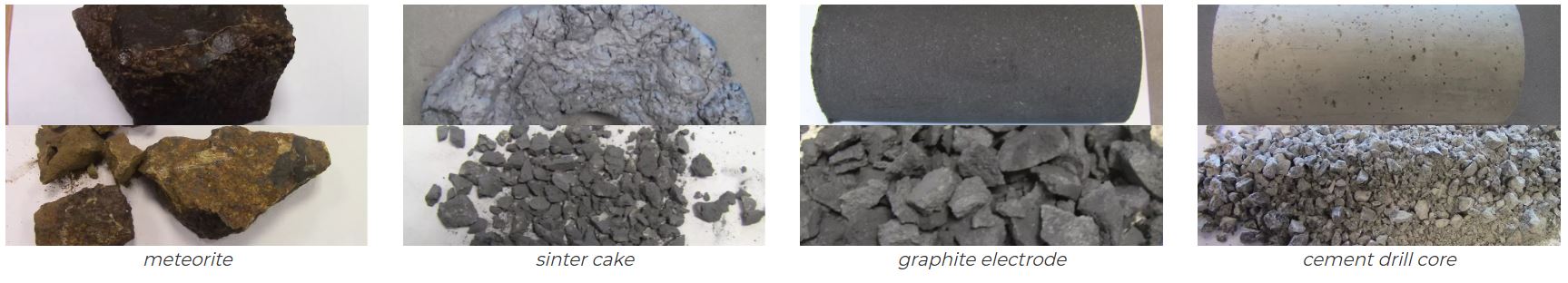

Application Examples

alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, quartz, ores, oxide ceramics, rocks, silicon, slag, …

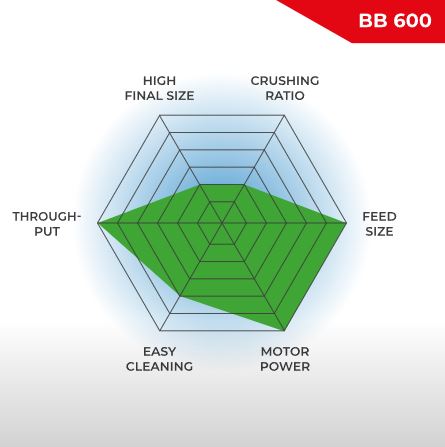

Product Advantages

  • High crushing ratio
  • High throughput up to 3,500 kg/h
  • Adjustable gap width setting
  • Overload protection
  • Size of breaking jaws 600 mm high / 400 mm wide
  • No-rebound feed hopper
  • Easy-to-clean crushing chamber
  • Continuous and batch-wise crushing
  • Connector for dust extraction
  • Central lubrication (optional)
  • Suitable for integration in automatic installations

Function Principle

The Jaw Crusher BB 600 is a robust and powerful jaw crusher. The feed material passes through the no-rebound hopper and enters the crushing chamber.

Size reduction takes place in the wedge-shaped area between the fixed breaking jaw and the movable breaking jaw driven by an eccentric drive shaft. The elliptical motion crushes the sample which then moves downwards under gravity.

On reaching the discharge gap width, it falls into a removable collector or, for continuous applications, on a conveyor belt, vibratory feeder or sampler.

Applications: coarse and pre-crushing
Field of application: chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics
Feed material: medium-hard, hard, brittle, tough
Size reduction principle: pressure
Material feed size* < 350 x 170 mm
Final fineness*: < 6 mm
Material of grinding tools: manganese steel
Jaw width: 400 x 240 mm
Gap width setting: 6 – 60 mm with spacer plates
Dust extraction unit: yes
Central lubrication:

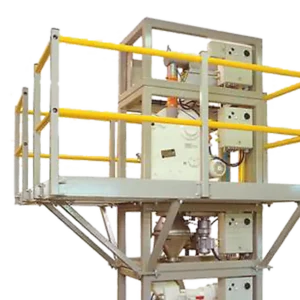

Process line version: optional
Collector capacity: 30 l
Drive: 3-phase motor
Drive power: 15 kW
Electrical supply data: different voltages
Power connection: 3-phase
Protection code: IP 55
W x H x D closed: 925 x 1600 x 1370 mm
Net weight: ~ 1350 kg
Standards: CE
